The Spiral Saucepan is a response to a brief asking for an emotive design based on a dining ritual. The act of stirring water to poach an egg was chosen, the physical act playfully replicated through an innovative spiral vessel design.

Developing the form was a challenging process using traditional workshop techniques, not lending themselves particularly well to the spiral shape. Knowing this most of the experimentation was done using 3D printing.

Using a Printrbot Simple, over 40 sketch models were produced. Each took roughly 15 minutes to print, so the form was able to be painlessly and quickly iterated upon.

A selection of the 3D printed sketch models

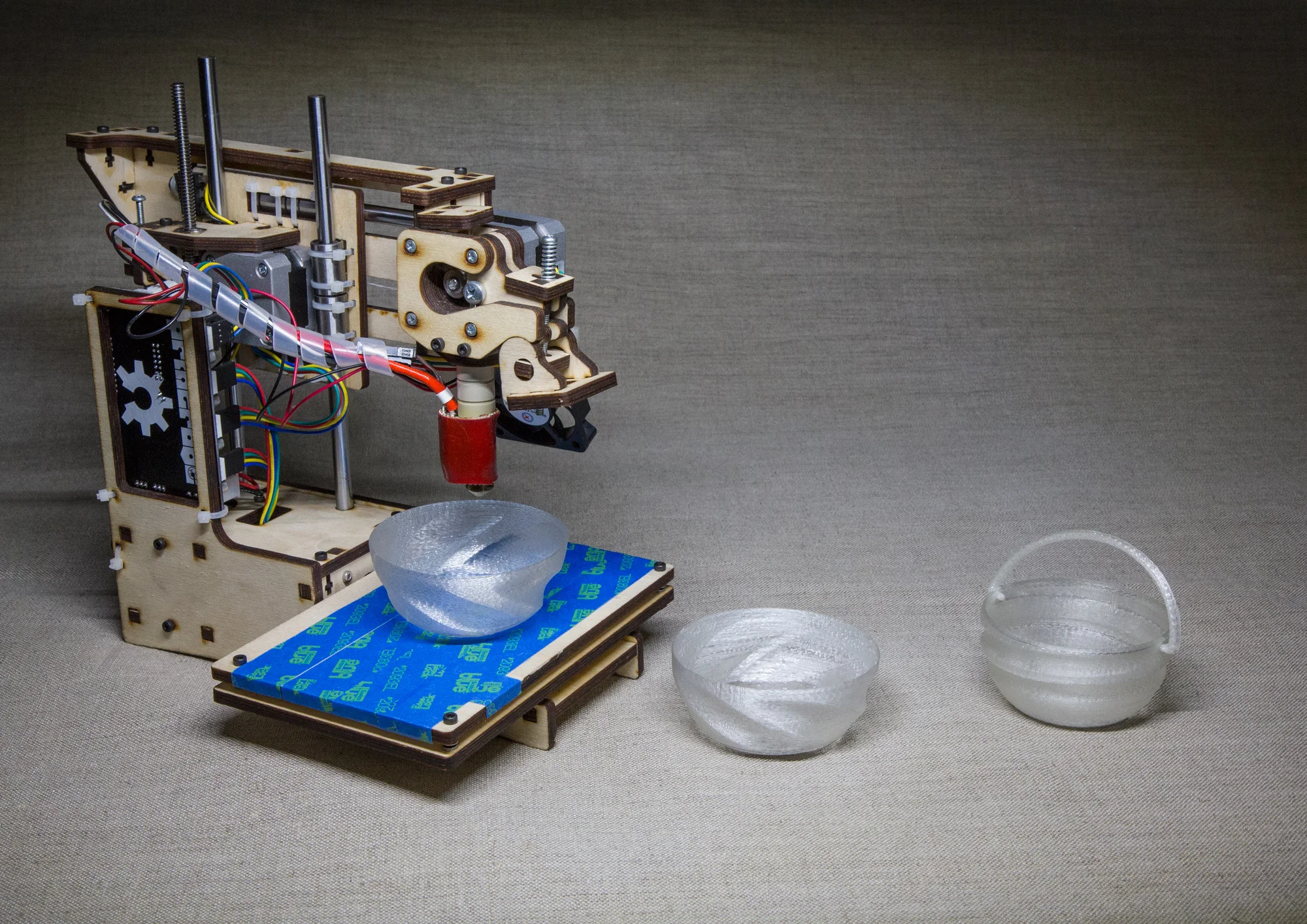

PrintrBot Simple with form explorations

Printing in a clear PLA with a 0.8mm wall thickness giving the models a beautiful crystalline finish

Printing in a clear PLA with a 0.8mm wall thickness giving the models a beautiful crystalline finish

Early concept sketch renders

Early concept sketch renders

Anodized gold aluminium anyone?

Finding a good shape, it was time to print a full-scale model. The final print took over 14 hours:

2013-09-02 18.42.45.jpg

The print has a really good weight in the hand, and the high quality PLA used was from a supplier in Germany who provide the best PLA with the lowest melting temperatures and highest filament tolerances. Unlike most PLA used for 3D printing which is shiny, it has a chalky matte texture that is a pleasure to work with. It almost feels like wood.

Printed on a BFB3000 using a high quality German PLA (175°C) and sliced with KISSlicer. Spray painted black on the inside.

Printed on a BFB3000 using a high quality German PLA (175°C) and sliced with KISSlicer. Spray painted black on the inside.

The finished full-size form model with handle printed in 3 parts and joined together with wire and glue.

The finished full-size form model with handle printed in 3 parts and joined together with wire and glue.

Adding a handle was quite challenging - I borrowed the sweeping lines from classic French saucepans and attempted to join it with the body in a way that didn't compromise the twisting outer surface.


The main body would be made of an anodised cast aluminium for its thermal qualities, weight and appearance - the handle out of stainless steel.

Given the limited scope of the project I didn't have the resources to properly explore tensile strength, heat transfer and material selection, but is something I would love to expand on further.
